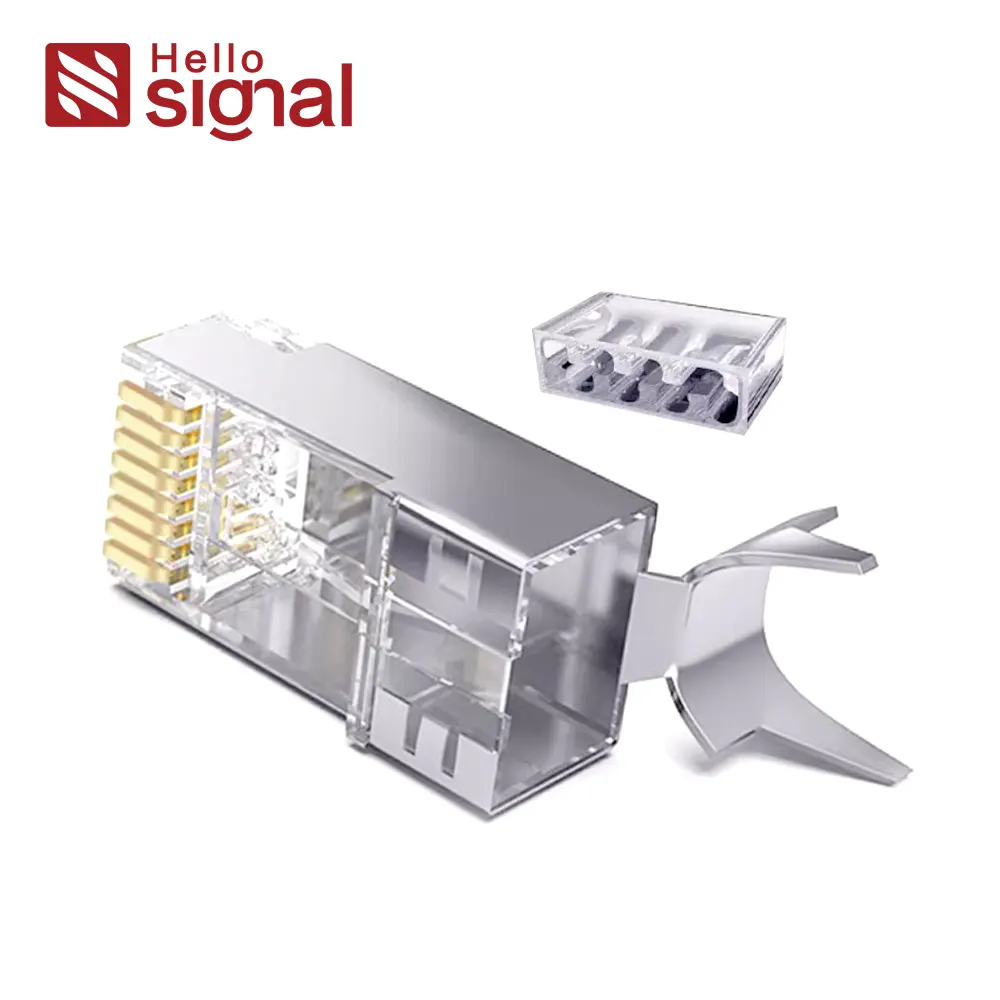

ZC-MP7-88SR145-S1(7246214) 8P/8C, CAT7, Shielded, Round, Fix Tail Clamp 8-position, 1.45mm Insulation OD, crystal head

SKU 7246214 Categories , ,
Conductor Gauge Solid/Stranded  26-23 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ  OR  30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel

SCAPC 10dB Fiber Optical Attenuator-2

INQUIRE NOW
  • Descriptions​

CAT7 FTP Modular Plug, 8P/8C, CAT7,Shielded, Round, Fix Tail Clamp
8-position, 1.45mm Insulation OD,crystal head,100/bag

Product composition View

ZC-MP7-88SR145(7246214)-1

Dimensional Structure

CAT7 FTP Modular Plug Dimensional Structure

Electrical Specifications

ANSI/TIA Category 7
Current Rating,maximum 0.75 A
Insulation Resistance,minimum 500 mOhm
Safety Voltage Rating 150 Vac
Pass fluke test Compliant

General Specifications

Cable Type Round,shielded
Interface RJ45
Application
Operating Temperature -40℃ to +85℃
Relative Humidity Up to 93%, non-condensing
Package Quantity 100
Packaging Type Bag  |  Box  |  Carton
Positions/loaded Contacts 8P/8C

Mechanical Specifications

Conductor Gauge Solid/Stranded  26-23 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ  OR  30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel

Regulatory Compliance/Certifications

RoHS 2011/65/EU Compliant
