Category 5e cabling systems is playing a major role in data centers and mission-critical environments upgrading to 1GBASE-T.
ZION Communication CAT5e U/UTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 5e. The patch cords are 100% tested per Cat.5e Channel up to 100 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, HDBase-T A & B and ATM, CATV,computer,hubs,switches, routers,DSL/cable modems and patch panel in Gigabit datacenter.
| Description | Material | Type | |||||
| Plug | Polycarbonate | RJ45 | |||||
| Boot | LSZH OR PVC | Snagless | |||||
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | Blades | |||||
| Durability | 750 Mating Cycles min. | ||||||
| VERSION | CLASS | MAX. OPERATING FREQUENCY | SHIELDING TYPE | PLUG CONNECTOR | USED FOR | NOTE | NORMAL |
| Cat 5e | G (I) | 100MHz | U/UTP | RJ45 | 1GBase-T (Lengths of 100m) |
Faster server interconnection. Connections in data centres. |
ISO/IEC TR 11801-99-1 |

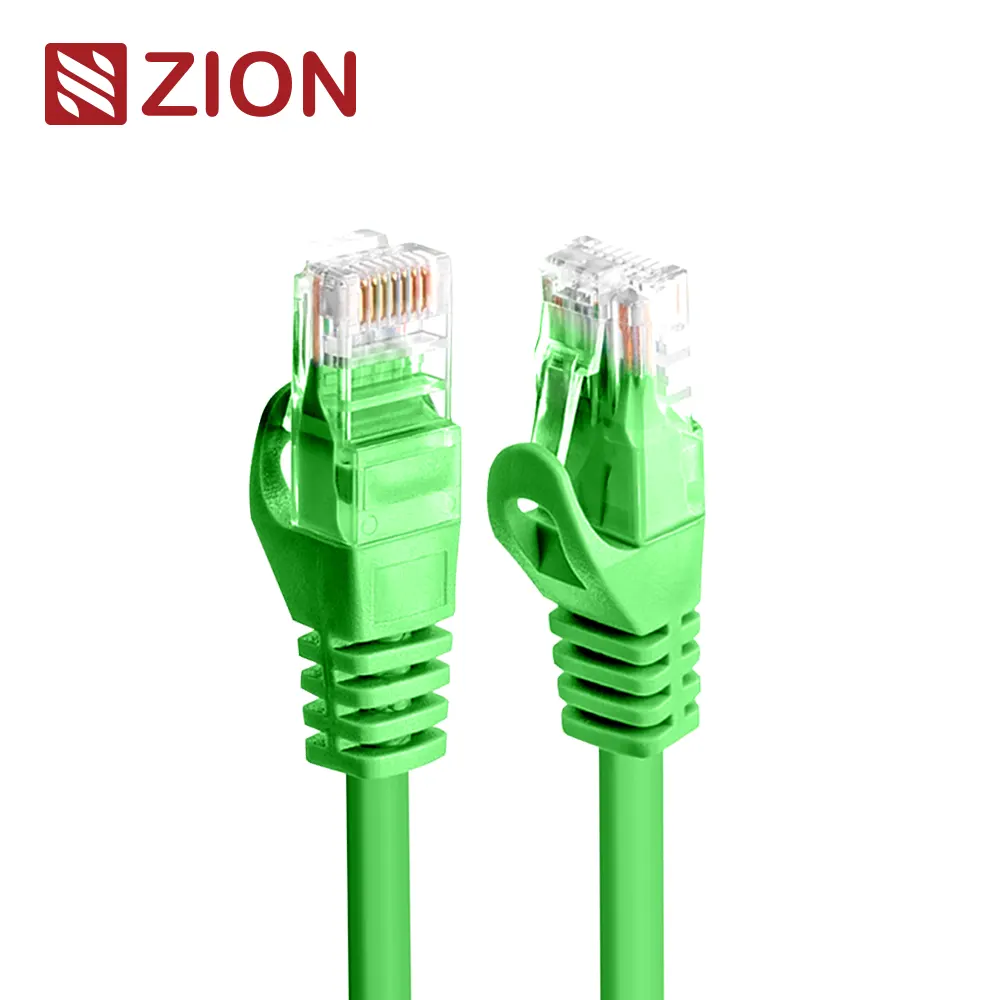

CAT 5e U/UTP 26AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.16mm Copper; Cable OD:5.0±0.2mm;
| Zion Code | Description | ||||||
| U5E2CO05MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 0.5m | ||||||
| U5E2CO1MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 1m | ||||||
| U5E2CO2MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 2m | ||||||
| U5E2CO3MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 3m | ||||||
| U5E2CO5MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 5m | ||||||
| U5E2CO7MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 7m | ||||||
| U5E2CO10MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 10m | ||||||
| U5E2CO15MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 15m | ||||||
| …… | …… | ||||||
| U5E2CO100MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 100m | ||||||
CAT 5e U/UTP 28AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.127mm Copper; Cable OD:4.8±0.2mm;
| Zion Code | Description | ||||||
| U5E3CO05MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 0.5m | ||||||
| U5E3CO1MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 1m | ||||||
| U5E3CO2MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 2m | ||||||
| U5E3CO3MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 3m | ||||||
| U5E3CO5MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 5m | ||||||
| U5E3CO7MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 7m | ||||||
| U5E3CO10MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 10m | ||||||
| U5E3CO15MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 15m | ||||||
| …… | …… | ||||||
| U5E3CO100MGN | CAT 5E U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Green, 100m | ||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | |||||||
| • Customized Logo on Plug & Boot | |||||||
| • Printing on Cable | |||||||
| • Label/PE bag/Carton design | |||||||
| • Different Color & Different Lengths Available | |||||||
| • Different Molding/Strain Relief |
